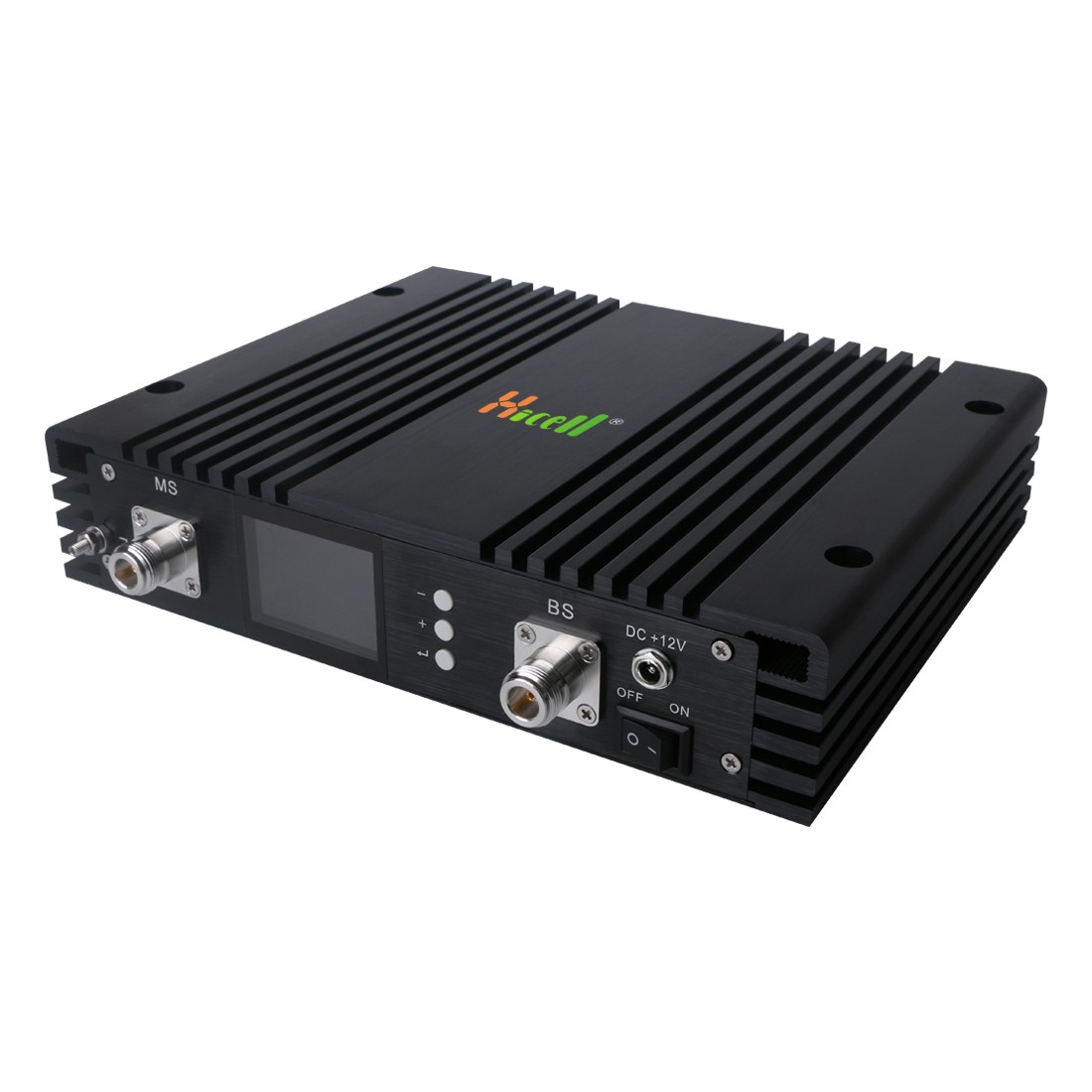

27 dBm Single Band 2G/3G/4G Cellular Signal Booster

Main Features

  • Support Band 1/2/3/4/5/7/8/20 single band

  • Low power consumption, low interference

  • AGC and ALC circuit

  • Safety with automatic shutdown function

  • LCD screen show real time working status

  • Smart self-adaptive operating system with powerful CPU

  • Quality metal construction, strong and durable

  • Good heat dissipation for longevity

Product Overview
Model List
Specification

27 dBm single band signal booster has been specifically designed to help users to solve coverage problems and enable high data transmission rates in a variety of medium indoor environments such as homes, offices, etc. It can offer a rapid mobile coverage extension on the 800/900/1800/2100/2600/850/1900/1700 MHz network.


The booster is working as a relay between the BTS and mobile phones. The strongest signal from BTS will be picked up by donor antenna, amplified by the booster, and retransmitted by service antenna to the area with weak/blind signal.


Accessories List

Power supply 1 PC

Installation kit 1 set

User manual 1 PC


Model

Frequency

Output Power

HC27K-EGSM

900MHz (Band 8)

27 dBm

HC27K-DCS

1800MHz (Band 3)

27 dBm

HC27K-WCDMA

2100MHz (Band 1)

27 dBm

HC27K-LTE20

800MHz (Band 20)

27 dBm

HC27K-LTE7

2600MHz (Band 7)

27 dBm

HC27K-CDMA

850MHz (Band 5)

27 dBm

HC27K-PCS

1900MHz (Band 2)

27 dBm

HC27K-AWS

1700MHz (Band 4)

27 dBm

HC27K-TETRA

TETRA frequency

27 dBm



Items

Uplink

Downlink


Frequency Range[1]



800(LTE Band 20)

832 ~ 862 MHz

791 ~ 821 MHz

850(LTE Band 5)

824 ~ 849 MHz

869 ~ 894 MHz

900(LTE Band 8)

880 ~ 915 MHz

925 ~ 960 MHz

1800(LTE Band 3)

1710 ~ 1785 MHz

1805 ~ 1880 MHz

1900(LTE Band 2)

1850 ~1910MHz

1930 ~1990MHz

2100(LTE Band 1)

1920 ~ 1980 MHz

2110 ~ 2170 MHz

2600(LTE Band 7)

2500 ~ 2570 MHz

2620 ~ 2690 MHz

Output Power

17±2 dBm

27±2 dBm

Gain

70±3 dB

75±3 dB

Ripple

?6dB (type)

?6dB (type)

ALC Active 10dB

??1dB

??1dB

Noise Figure @ max. Gain

?6 dB(type)

?6 dB(type)

VSWR

?2

?2

Time Delay

?0.5 ?S

?0.5 ?S

Intermodulation Products

9KHz~1GHz

?-45 dBc

?-40 dBc

1GHz~12.75GHz

?-45 dBc

?-40 dBc

Spurious Emission

9KHz~1GHz

?-36 dBm(RBW=30KHz)

?-36 dBm(RBW=30KHz)

1GHz~12.75GHz

?-30 dBm(RBW=1MHz)

?-30 dBm(RBW=1MHz)

ATT Step of 1 dB

1~10 dB

????1 dB

????1 dB

10~20 dB

????1 dB

????1 dB

21~30 dB

????1.5 dB

????1.5 dB

LCD Indicator

Output Power

Gain

Power Supply

DC: + 28V

Power Consumption

?20W

Weight

?2.5 Kg

Operating Temperature

-10? ? +50?


  Note:

   1. This model can be made with any single band needed. Please contact us if you need other frequencies.
