Main Features
Wide frequency band 698-2700MHz
Low VSWR
Low passive intermodulation
Widely used in in-building solutions

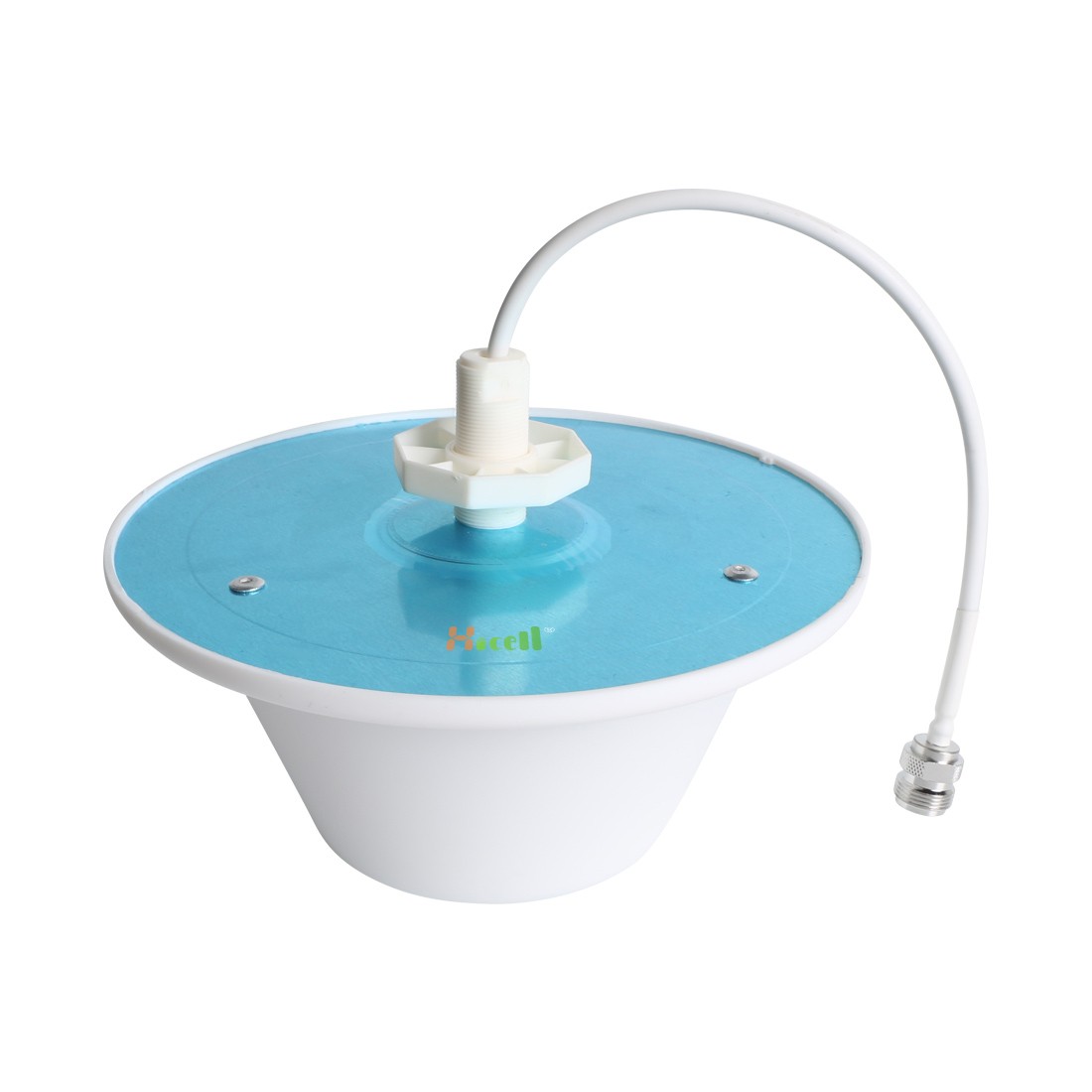

This full band omni antenna is designed for indoor use. It supports 2G, 3G, 4G networks. The antenna will be mounted on the ceiling and transmit/receive the signal with 360 degree beam width. The gain of the antenna is 3/6 dBi.
Model | HCIO0727-06H | |
Frequency Range | 698-960MHz | 1710-2700MHz |
Gain | 3/6dBi | |
VSWR | ?1.5 | |
Polarization Type | Vertical polarization | |
Horizontal Beam Width | 360° | 360° |
Vertical Beam Width | 85° | 40° |
Roundness | ?2dB | |
Intermodulation IM3 (2*33dBm carrier) | ?-150dBc | |
Impedance | 50? | |
Input maximum CW Power | 50 (W) | |
Interface Type | N-Female | |
Dimensions of antenna | ?185×84 | |
Weight of antenna | 0.21 kg | |
Radiator Material | Aluminum | |
Antenna cover | ABS | |
Temperature range | -40???55? | |
